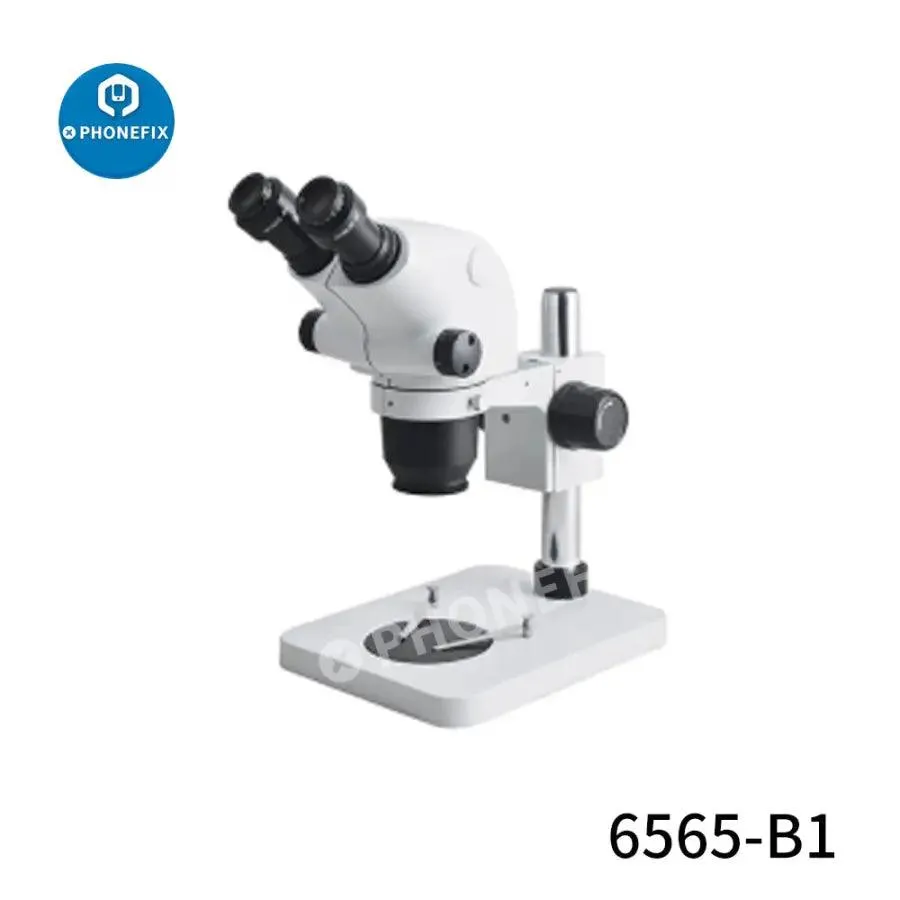

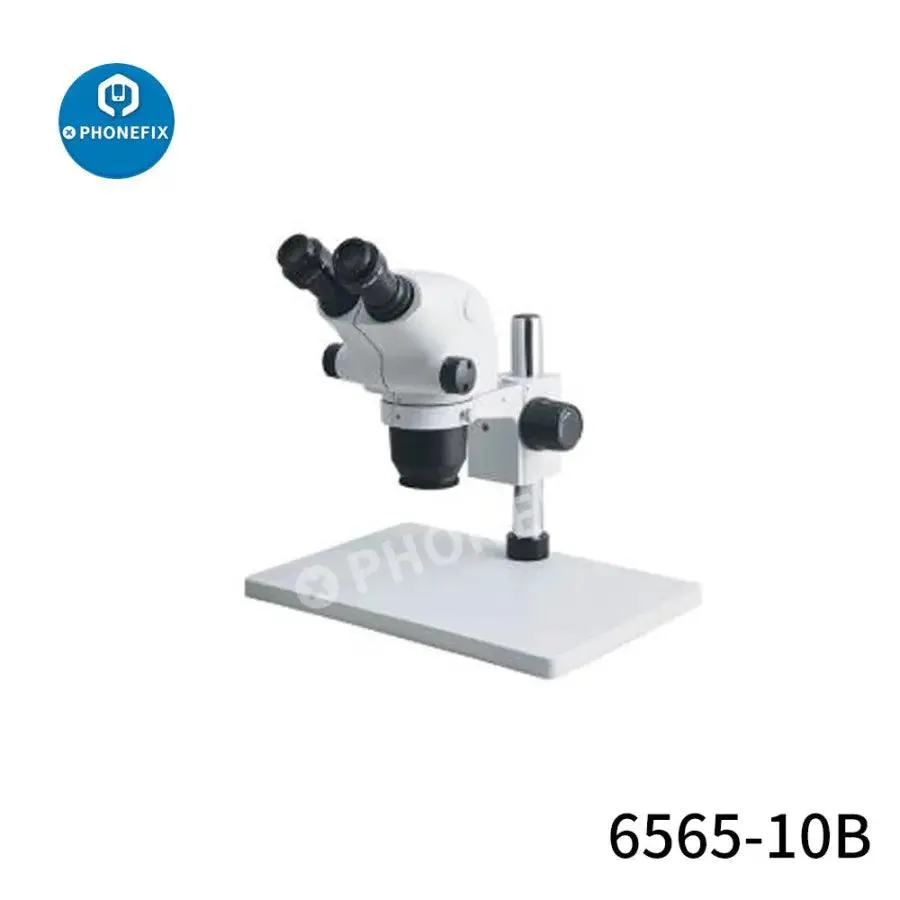

6.5X-65X 6565-B1/6565-10 Binocular Stereo Zoom Microscope For Mobile Phone Motherboard Inspection Repair Working
Features:
1. 6.5X-65X high point wide field magnification settings provide convenience for observers wearing glasses
2. 0.65X-6.5X Zoom Range objective ensures image alignment
3. Optional and auxiliary lenses can be extended to 2X-260X, support continuous doubling
4. High quality optics offers crystal clear stereo images
5. Sturdy single-arm boom stand with solid B1 column type flat base
Specification:

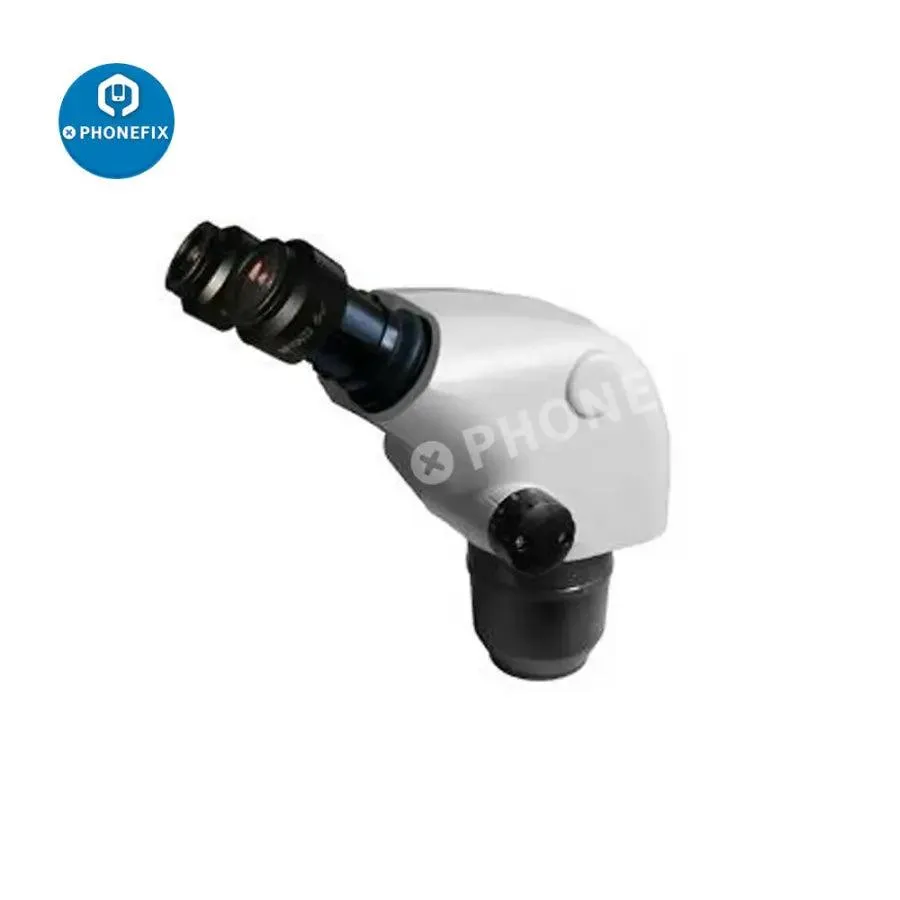

Observation Head: Binocular head, 360 degrees rotatable, 45 degrees inclined
Bilateral Visual Adjustment: ±5
Pupil Distance: 54-76mm
Adjustable Eyepiece: WF20X12mm(Standard), High Point Wide Field Eyepiece
Optional eyepiece: WF10X22，WF20X12mm
Objective：0.65X-6.5X continuous zoom range
Objective zoom ratio: 10:1
Auxiliary Objective Lens(optional): 0.3X，0.5X，0.7X，1X，2X
Magnification: 6.5X-65X (Standard),optional and auxiliary lenses can be extended to 2X-260X,Continuous doubling
Working Distance：110mm
Focus Arm: 76mm Inner Diameter,32mm Pole Size
Plate: Black/White Plate
Base: B1 Column Type Small Flat Base
Illumination: LED Ring Light Optional
Outward Size: 320mm(w)x260mm(d)x274mm(h)
