Stereo Microscope Zoom Trinocular Microscope Head 6.5X-65X 3.25X-130X 3.25X-260X 0.5X 2.0X Auxiliary Lens WF10X/22mm/WF20X/10mm Eyepiece

Features:
1. 0.65X-6.5X Zoom Range objective ensures image alignment

2. 6.5X-65X high point wide field settings provide upright images with clear depth-of-field and a wide view for hands-on applications.

3. Optional and auxiliary lenses can be extended to 3.25X-260X. Support continuous doubling.

4. LED ring-light produces an encompassing field of bright light with reduced shadows for use with any application.

5. Provide convenience for observers wearing glasses, and ideal for laboratories, repair shops, and engravers.

Specification:
Observation head: 45°decline,360°rotate, Pupil distance 54---76mm
Bilateral visual adjustment±5
Adjustable eyepiece: wide-angle eyepiece WF10X22mm
Objective: 0.65X---6.5X Zoom Range,
Objective magnification ratio 1:10
Body Mounting Size for Stand Dia. 76mm
Magnification Detent 1X per pre-set stop

Function:
Eyepiece:WF10X22/WF20X10
Zoom Rate position:0.65-6.5x
Magnification:6.5x-65x
View:32.2mm-3.4mm
Working Distance:110mm
Observation head:45°decline,360°rotate,Pupil distance 54---76mm;Bilateral visual adjustment±5
Adjustable eyepiece:Standard WF10X22,High angle wide angle eyepiece,provide convenience for observers wearing glasses
Objective:0.65X---6.5X Zoom Range,objective magnification ratio 1：10,Ensure image alignment
Auxiliary Lens:0.5X，2X
Magnification:Standard 6.5X---65X,Optional and auxiliary lenses can be extended to 3.25X---130X,Continuous doubling

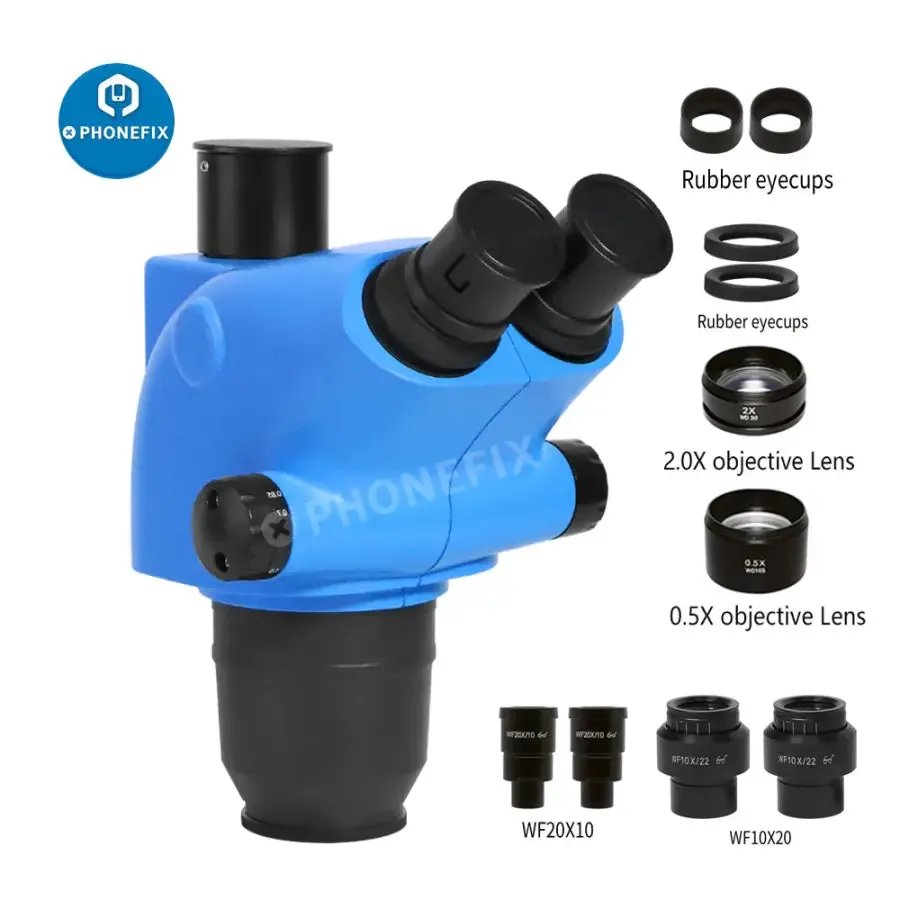

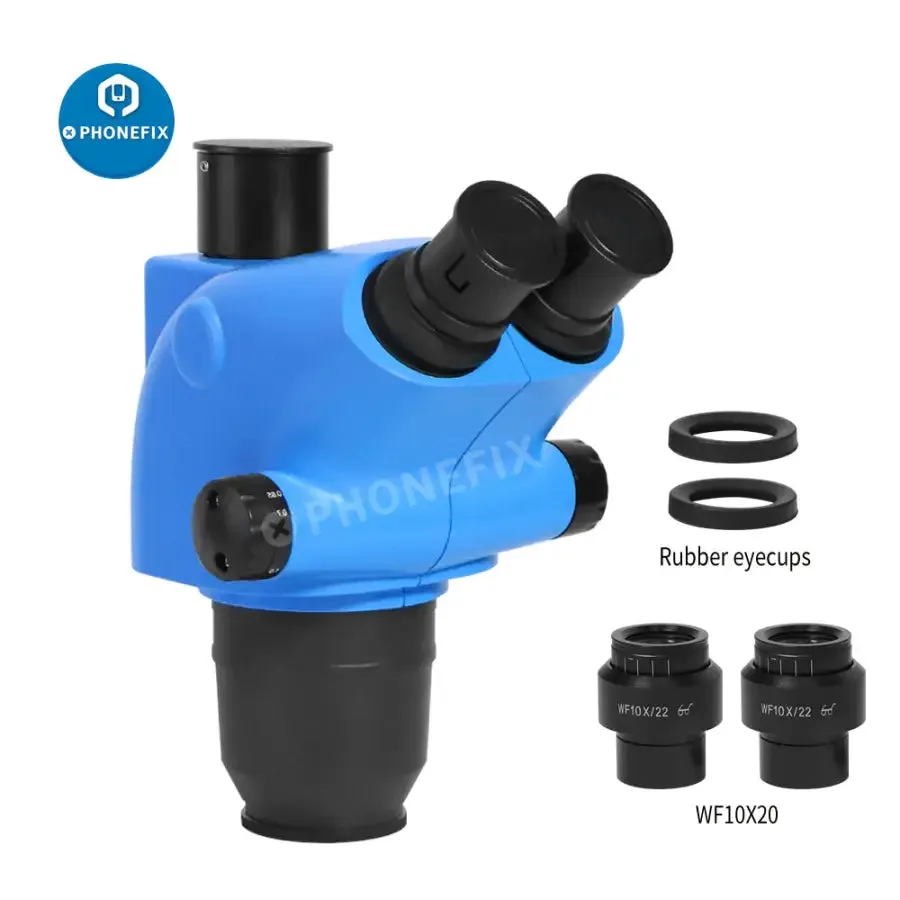

Package Including:
1 x 6.5X-65X Trinocular Stereo Microscope Head
1 x Pair of Super Widefield 10X22MM Eyepieces
1 x Pair of Eye-Guards
1 x Dust Cover
（Optional）
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 30 mm)
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)
